Tape Test Method Work Instruction

Introduction



Purpose:

This test verifies the adhesion strength between paint film and base

STEP 1

Work Method:

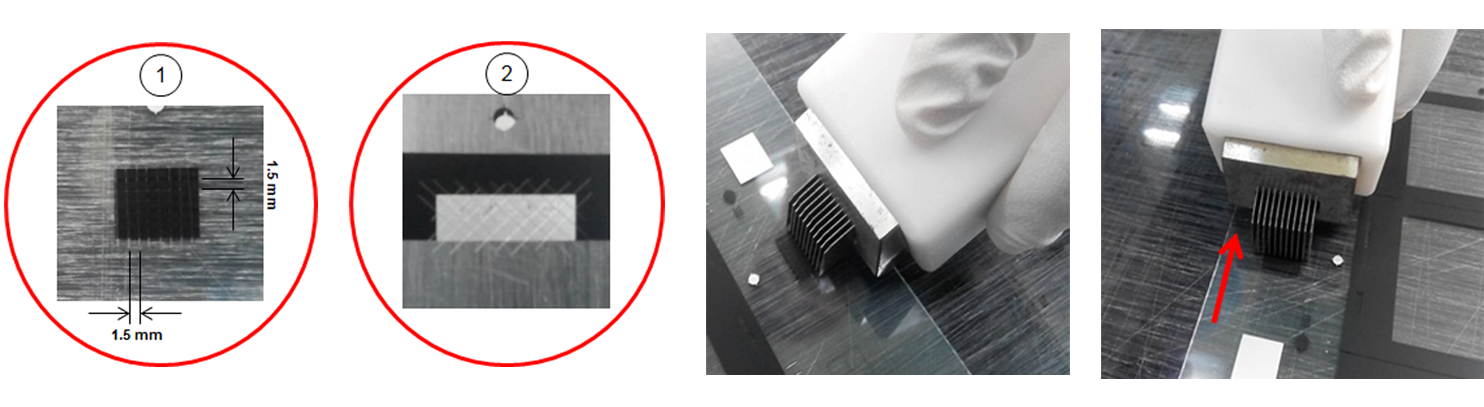

1) For Solid Printing make 11 parallel cut 1.5mm part at 90° to the 1st parallel cuts.

2) Using a Parallel sharp knife to cut a mark in the shape of an "X" for lettering.








STEP 2

Work Method:

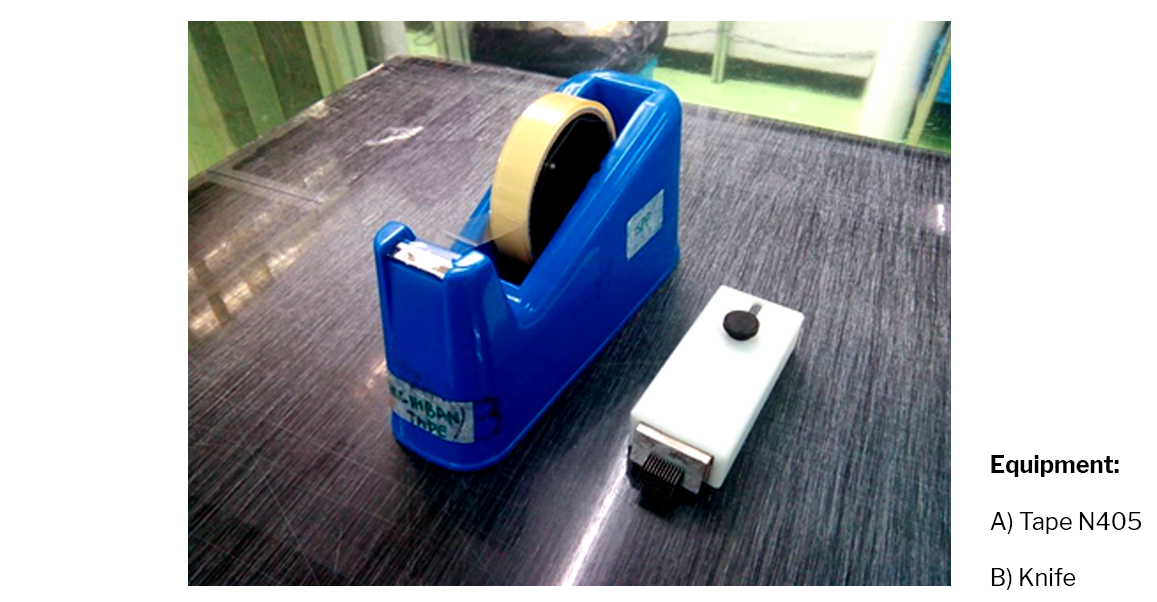

1) Apply pressure to sensitive adhesive tape (Nichiban N405) onto the area cut

2) Pull the tape off quickly at a 90° angle to the surface.

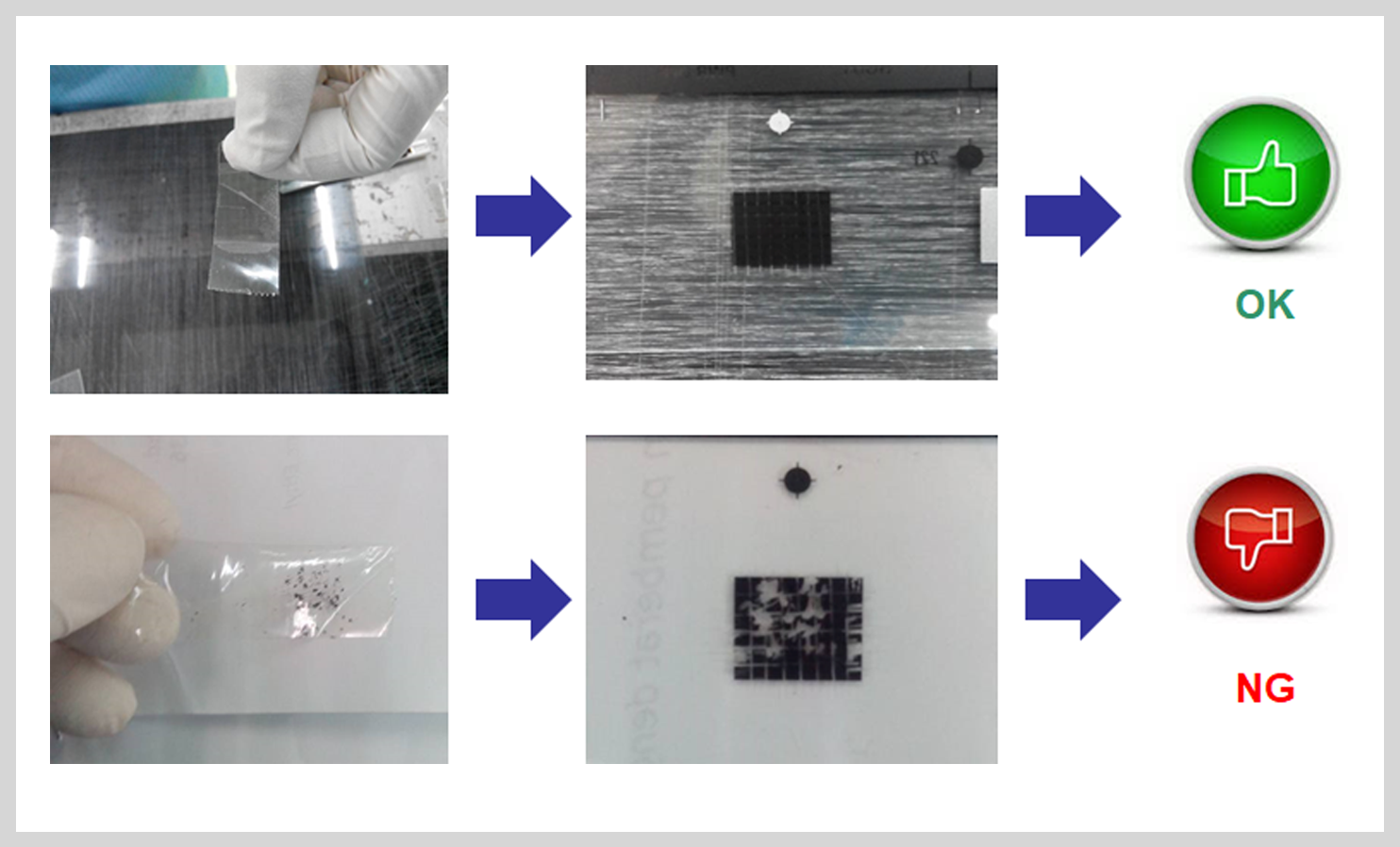

After Test
